~ Michael Bates 1967 Chevelle ~
1967 Chevelle Photo Galleries
 Click Here
Full Body Mock-Up (16)Pics
 Click Here
Up Close (10)Pics
 Click Here
Finished Up (6)Pics

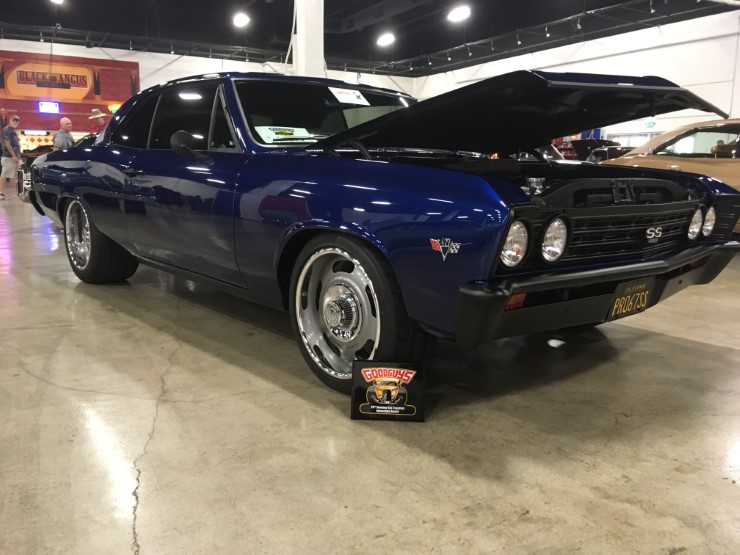

Munk Race Fab recently finished this 1967 Chevelle for a local business owner and friend Michael Bates. The car came you us in rough condition having been disassembled for “restoration” more than 7 years ago. After evaluation of the project a plan was made. We began gathering parts. This was an 18 month build for MRF from start to finish.


1966 Chevelle

We began by placing body on rotisserie, media blasting and replacing various panels. Wheel tubs and trunk pan were then modified to accommodate 18x12 rear wheels and 315 drag radials. Stock frame was then sectioned 6 inches. Total rear end housing narrowed 4 inches. Adjustable aluminum coil over shocks were added and frame is boxed.


1966 Chevelle

1966 Chevelle

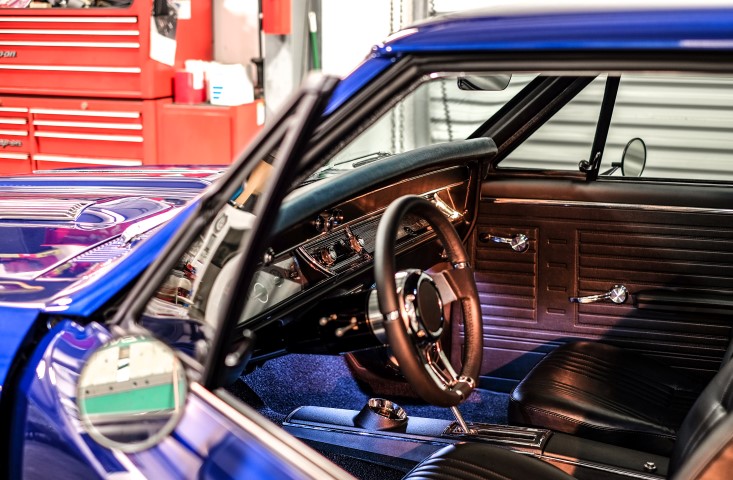

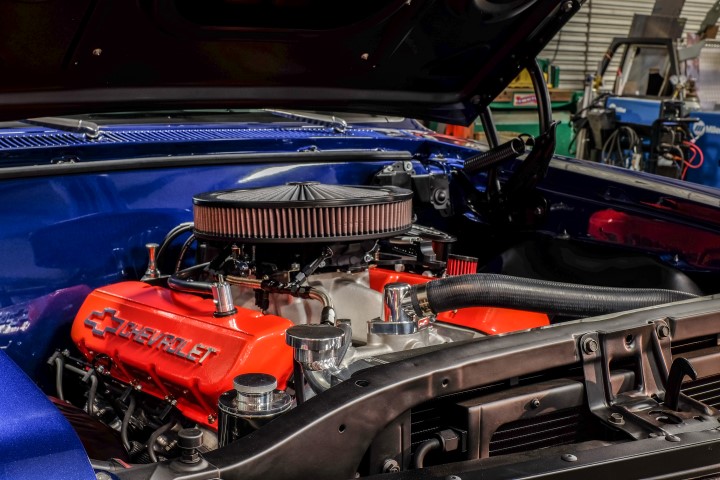

The car’s owner Mike gets credit for engine and transmission build. The engine is traditional old school 427 BBC. 11:1 compression, Edelbrock Performer RPM heads, Howards .625 lift roller cam and a host of premium parts. Trans is a GM4L80 with 2800 stall converter and US gear trans controller. American Auto Wire provided the harness and load center. A huge Restomod Air Haymaker 11 A/C -heater. Unit is tucked up behind the dash. Restomod's “Reactor” controller and dash registers were integrated into the dash frame. Dakota digital VHX series instrumentation monitors vitals and LED lighting is used throughout. Fit and finish is evident but make no mistake this is not just another “show car”. It will be driven and enjoyed on our scenic Northern California roads.
